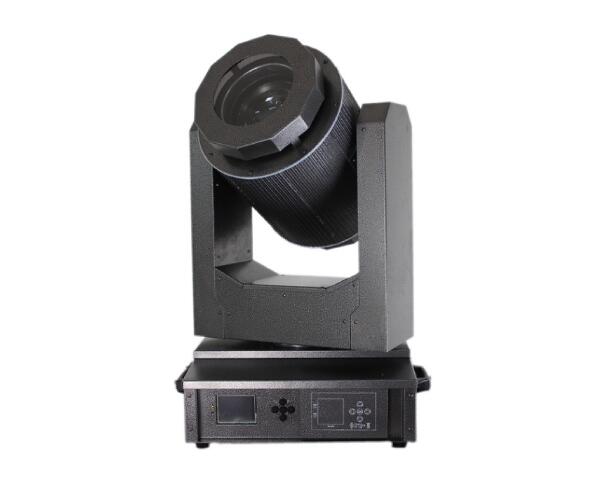

AB-350 17R IP65
specification:
Light source: YODN 17R
Color Wheel: 14 + 1, rainbow effect
Pattern wheel: 17 + 1 fixed pattern white
Focus System: Electric Focus
Linear dimming curve: 0% -100% linear dimming
Prism system: eight prism, rotating, macro function
Display: LCD display accommodate different mounting positions
Horizontal :540 °
vertical :210 ° fast and smooth,
Channel DMX: 16CHS
Waterproof grade: IP 65
Dimensions: 650×590×920mm
Weight: 35kg
DMX Channel Infomation:
|
20 DMX Channel Mode |
Channel Content |
16 DMX Channel Mode |
Channel Content |
|
Chanel 1 |
Color |
Chanel 1 |
Color |
|
Chanel 2 |
Strobe |
Chanel 2 |
Strobe |
|
Chanel 3 |
Dimmer |
Chanel 3 |
Dimmer |
|
Chanel 4 |
Gobo Wheel |
Chanel 4 |
Gobo Wheel |
|
Chanel 5 |
Prism |
Chanel 5 |
Prism |
|
Chanel 6 |
Prism Rotation |
Chanel 6 |
Prism Rotation |
|
Chanel 7 |
Gobo Shake |
Chanel 7 |
Gobo Shake |
|
Chanel 8 |
Frost |
Chanel 8 |
Frost |
|
Chanel 9 |
Focus |
Chanel 9 |
Focus |
|
Chanel 10 |
Pan |
Chanel 10 |
Pan |
|
Chanel 11 |
Pan Fine |
Chanel 11 |
Pan Fine |
|
Chanel 12 |
Tilt |
Chanel 12 |
Tilt |
|
Chanel 13 |
Tilt Fine |
Chanel 13 |
Tilt Fine |
|
Chanel 14 |
Pan/Tilt Speed |
Chanel 14 |
Pan/Tilt Speed |
|
Chanel 15 |
Reset |
Chanel 15 |
Reset |
|
Chanel 16 |
Lamp |
Chanel 16 |
Lamp |
|
Chanel 17 |
Auto Work |
|
|
|
Chanel 18 |
Color Speed |
|
|
|
Chanel 19 |
Focus Speed |
|
|
|
Chanel 20 |
Gobo Speed |
|
|

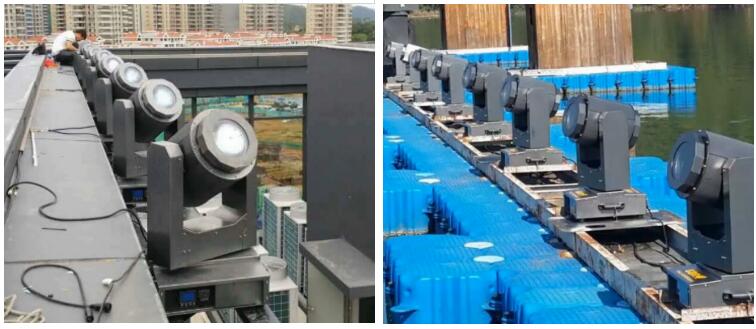

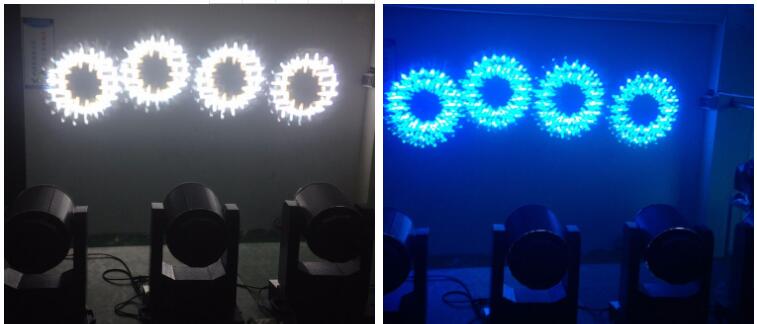

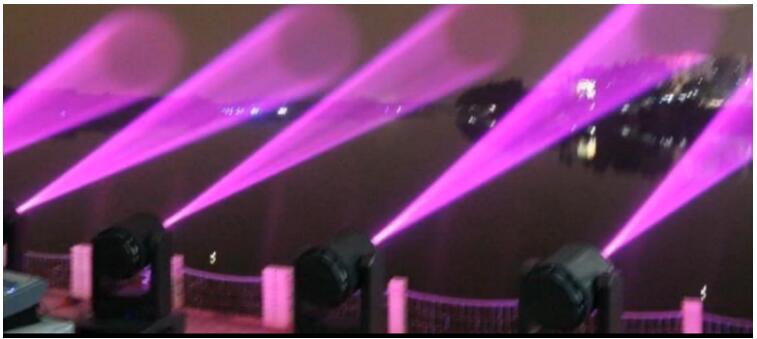

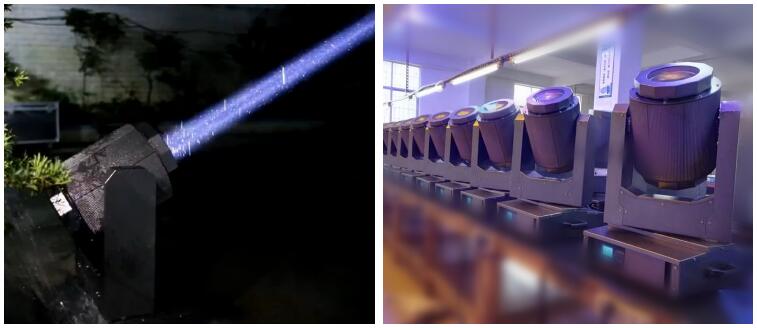

EFFECT PICTURE
