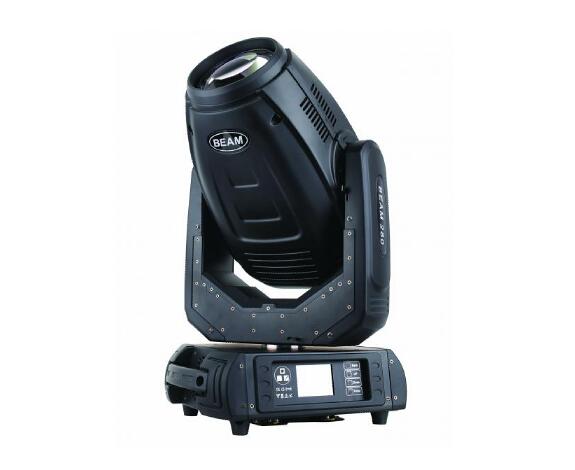

AB-280 10R Pointe

ITEM

SPECIFICATION

DETAILS

ELECTRICAL

Voltage Input

110-230V

Frequency

50-60Hz

Ballast Type

Electronic/Magnetic Ballast

Total Consumption

350W

LIGHT RESOURCE

Lamp Type

Single End Discharge Lamp

Lamp Model

10R lamp

Lamp Consumption

280W

Lamp Lasting Life

2,000 Hours

CONTROL

Control Signal

DMX512

DMX Connection

3-Pin XLR-Socket

DMX Channel

16/24 CH

Display

LCD Touch Display

Head Movement

X Pan 540聽Y Tilt 270聽(8 or 16 Bit)

Operation Modes

Mater/Slave, Stand Alone, Sound Active

OPTICAL SYSTEM

Dimmer

0-100%

Strobe

1-10 Flash/S

Prism

3D 6 facet prism+8 facet prism

Gobo Wheel

1 Fixed Gobo Wheel 14 Gobos + Blank, 1 Rotation Gobo wheel 9Gobos

Color Wheel

1 Color Wheel, 14 Colors+ White, Rainbow Effect, CMY Mixing

Special Effect

Bright Beam, prism gobo, zoom wash 3in1

Zoom

0-20

PHYSICAL

Housing Material

Flame-Retardant Plastic

Color Finish

Black

IP Rate

IP20

Single Carton Size

(L x W x H): 470x470x710(mm)

Single Gross Weight

25.5KG

Flightcase Packing Size (2pcs Lid on Top)

Gross Weight

CERTIFICATION

Certification

CE
