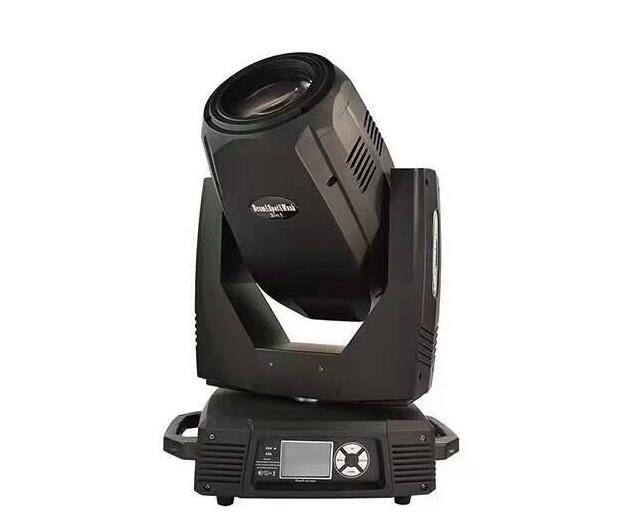

AB-350 17R BSW 3IN1
Introduction：
|
ITEM |
SPECIFICATION |
DETAILS |
|
ELECTRICAL |
Voltage Input |
110-230V |
|
Frequency |
50-60Hz |
|
|
Ballast Type |
Electronic/Magnetic Ballast |
|
|
Total Consumption |
500W |
|
|
LIGHT RESOURCE |
Lamp Type |
Single End Discharge Lamp |
|
Lamp Model |
17R lamp |
|
|
Lamp Consumption |
350W |
|
|
Lamp Lasting Life |
2,000 Hours |
|
|
CONTROL |
Control Signal |
DMX512 |
|
DMX Connection |
3-Pin XLR-Socket |
|
|
DMX Channel |
21/23/34 CH |
|
|
Display |
LCD Digtal Touch Display |
|
|
Head Movement |
X Pan 540° Y Tilt 270°(8 or 16 Bit) |
|
|
Operation Modes |
Mater/Slave, Stand Alone, Sound Active |
|
|
OPTICAL SYSTEM |
Dimmer |
0-100% |
|
Strobe |
1-10 Flash/S |
|
|
Prism |
8 facet roatating prism |
|
|
Gobo Wheel |
1 Fixed Gobo Wheel 14 Gobos + Blank, 1 Rotation Gobo wheel 7Gobos |
|
|
Color Wheel |
1 Color Wheel, 14 Colors+ White, Rainbow Effect, CMY Mixing |
|
|
Special Effect |
Bright Beam, frost filter, prism gobo |
|
|
Zoom |
9-27° |
|
|
PHYSICAL |
Housing Material |
Flame-Retardant Plastic |
|
Color Finish |
Black |
|
|
IP Rate |
IP20 |
|
|
Single Carton Size |
(L x W x H): 410x420x540(mm) |
|
|
Single Gross Weight |
25.5KG |
|
|
Flightcase Packing Size (2pcs Lid on Top) |
|
|
|
Gross Weight |
|
|
|
CERTIFICATION |
Certification |
CE |

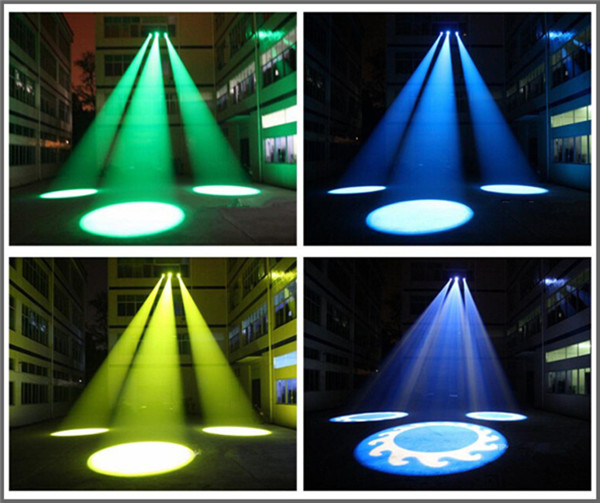

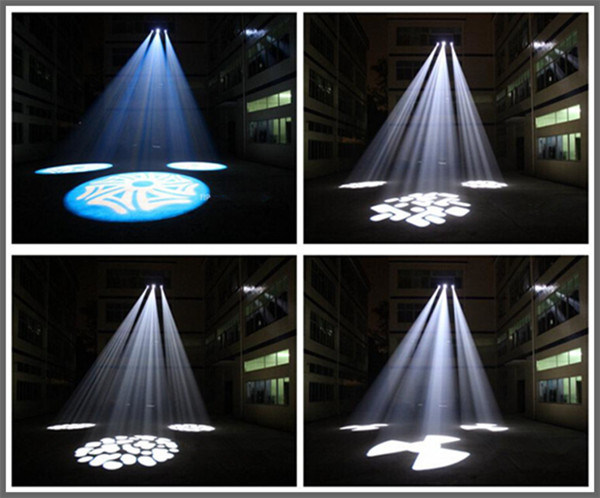

EFFECT PICTURE
