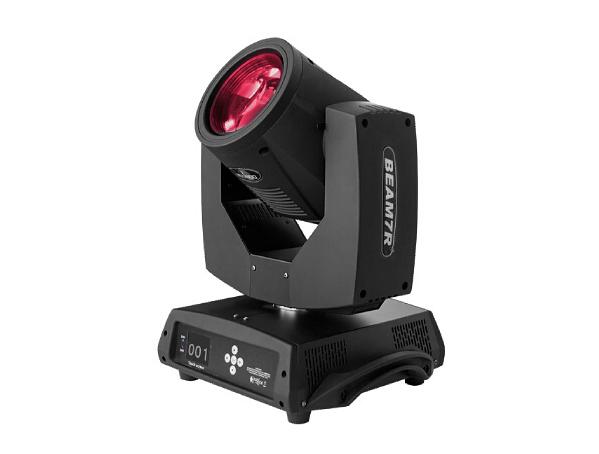

AB-230 7R Sharpy
Introduction：
|
ITEM |
SPECIFICATION |
DETAILS |
|
ELECTRICAL |
Voltage Input |
110-230V |
|
Frequency |
50-60Hz |
|
|
Ballast Type |
Electronic/Magnetic Ballast |
|
|
Total Consumption |
350W |
|
|
LIGHT RESOURCE |
Lamp Type |
Single End Lamp |
|
Lamp Model |
Osram Sirius HRI 7R Lamp |
|
|
Lamp Consumption |
230W |
|
|
Lamp Lasting Life |
2,000 Hours |
|
|
CONTROL |
Control Signal |
DMX512 |
|
DMX Connection |
3-Pin XLR-Socket |
|
|
DMX Channel |
16-20CH |
|
|
Display |
LCD Touch Display |
|
|
Head Movement |
X Pan 540° Y Tilt 270°(8 or 16 Bit) |
|
|
Operation Modes |
Mater/Slave, Stand Alone, Sound Active |
|
|
OPTICAL SYSTEM |
Dimmer |
0-100% |
|
Strobe |
1-10 Flash/S |
|
|
Prism |
8 facet roatating prism |
|
|
Gobo Wheel |
1 Fixed Gobo Wheel 17 Gobos + Blank |
|
|
Color Wheel |
1 Color Wheel, 14 Colors+ White, Rainbow Effect |
|
|
Special Effect |
Bright Beam, frost filter |
|
|
Zoom |
0-3.8° |
|
|
PHYSICAL |
Housing Material |
Flame-Retardant Plastic |
|
Color Finish |
Black |
|
|
IP Rate |
IP20 |
|
|
Single Carton Size |
(L x W x H): 510x470x680(mm) |
|
|
Single Gross Weight |
25.5KG |
|
|
Flightcase Packing Size (2pcs Lid on Top) |
|
|
|
Gross Weight |
|
|
|
CERTIFICATION |
Certification |
CE |

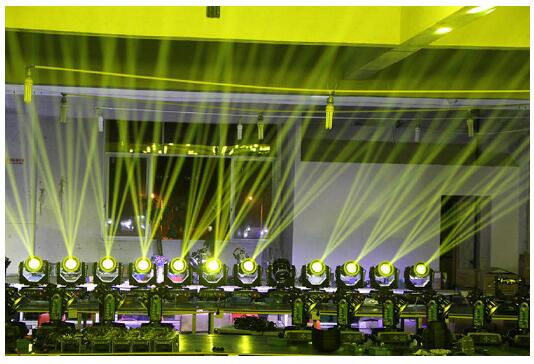

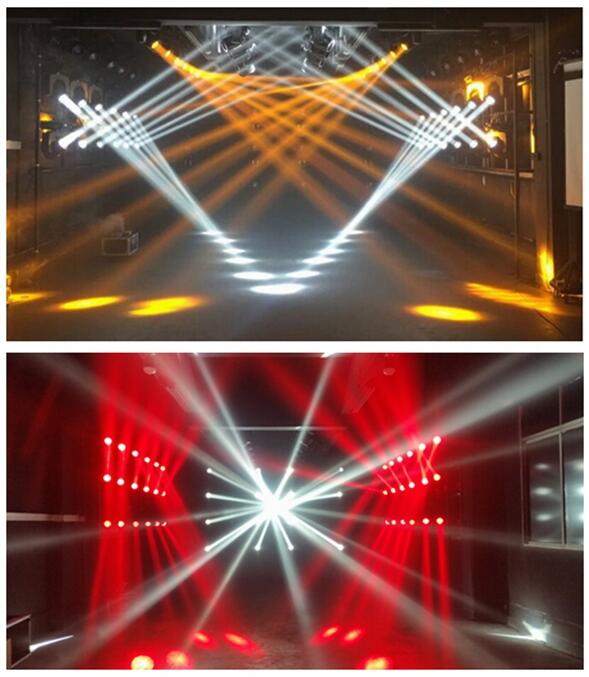

EFFECT PICTURE:
