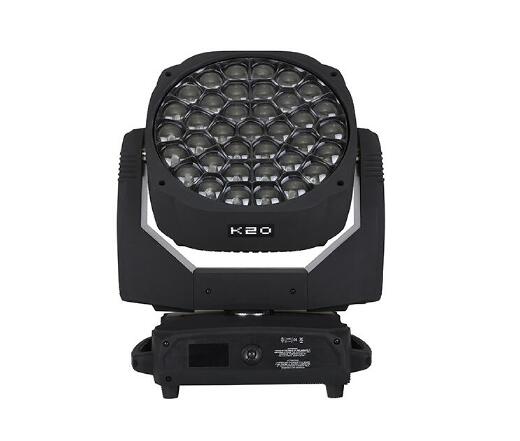

  • LED K20 BEYE

Technical Parameters


•Light source:37PCS OSRAM LED

•Optical: 4°-60°electronic zoom range

•Operating modes:Beam,wash,FX(Kaleido effects)

•Color Temperature(K):2500-8000k

•Dmx control:21 in standard mode

•Dmx Protocol signal:USITT DMX512

•Life Time(h):5000h

•Led Nominal wattage:15w


• 3 Operation modes:wash,beam,FX(Kaleido effects)

• Bi-directional rotation front lens

• Digital wash-beam framing effect

• Beam edge softening control (in wash mode)

• Pixel patterning macros with enhanced control

• 0-100% linear eletronic dimmer

• Adjustable speed stop/strobe effect,with instantaneous blackout

• Dedicated channel for color temperature setting.

• RGBW auto-tuning to lamp CT emulation.

• Tungsten Lamp emulation.

• White CT emulation 2500-8000k

• Slow strobe:1 flash/sec;Fast strobe:25 flash/sec

Control and pragramming

• Control channels:21 in standard mode

• DMX protocol signal:USITT DMX512

• Display:graphic LCD backlit b/w display

• Pan/Tilt resolution:16 bit

• Dimmer resolution:16bit

• Movement control: vertorical

• DMX signal connection:3 and 5 pole XLR input and output


•Die Cast aluminum+ Plastic coverBoth sides of the arm, Horizontal locking,easy to carry and protect  fixture

•3 step motor

•Horizontal and Vertical could be automated retrieval reset when accidental operation

•PAN = 540°TILT = 270°


•Long lifetime, Back-up battery,Automatic charging

•Preset the marco the color and Graphic effects

•Reset function be controled by  central controller

•Menu-driven built-in self-checking function

•Ethernet connect with RJ45 socket.

•Display mode: Backlight black&white Graphic LCD display

•Electronic check each parameter
