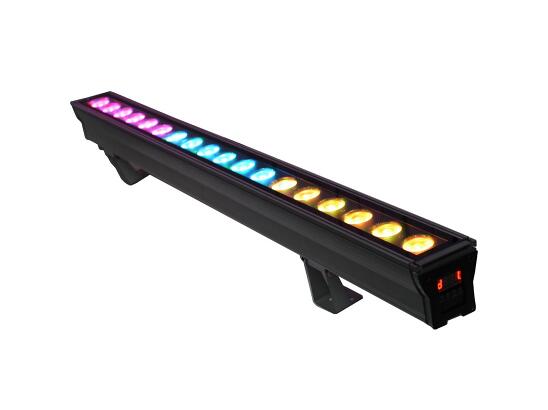

LED MATRIX BAR 18(IP65)

{Title}

Technical Specifications

Input Voltage:

l            100-240V, 50/60Hz

l            Max. Power Consumption

LED

l            Edision (High-Power LEDs Optional)。

l            18PCS 10-18W LED RGBW/RGBWA MATRIX

l            Edision (High-Power K2 Luxeon LEDs Optional)

l            < 100.000 hrs Rated Life

Beam angle

l            25°beam angle of each LED (10° 15°, 25° 30°, 45° optional)

l            Optional frost filters (glass or film) for even light distribution

Control and Programming

Protocol:

l USITT DMX-512

IP 65 protection

Operation modes:

l            DMX, Master/Slave, Stand-alone, Sound-actived.

Display:

l            LED Display

l            Unlimited Color Mixing

l            Pre-programmed colours & rainbow effect

l            Electronic dimmer for light output adjustment from 0 to 100%

l            High speed white or full colour strobe, flash rate 1-15 fps

DMX channels:

l 9/23/72CH

Input

Control:

l            DMX 512

l            DMX connection: 3-pin XLR-sockets

Packing specification

Gross Weight:

l            7.5 KG

Size:

l           1000  (L) x140 (w) x190 (H)

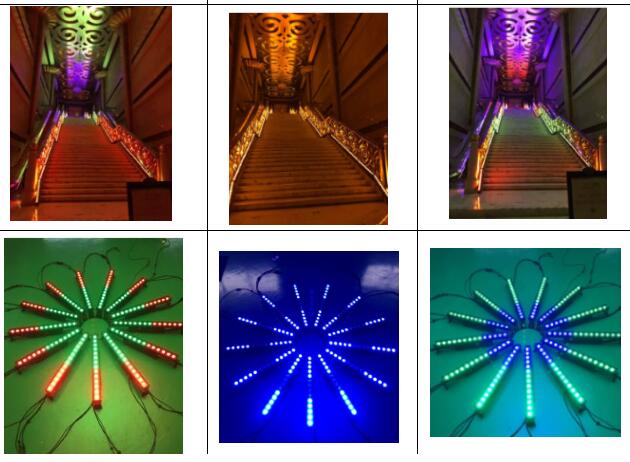

EFFECT PICTURE:
