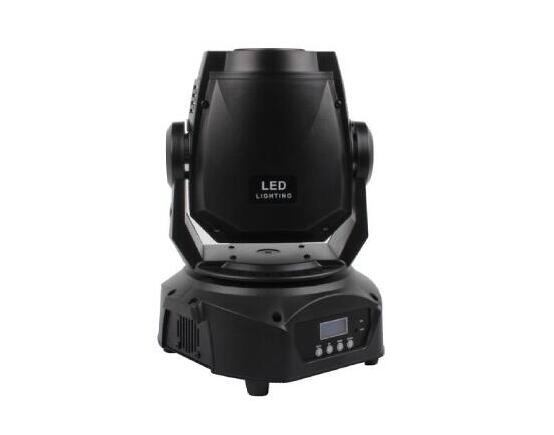

LED MS-60/90
Introduction：
|
Item |
Specification |
Details |
|
Electrical |
Voltage Input |
90 -230V |
|
Frequency |
50-60Hz |
|
|
Total Power Consumption |
80W |
|
|
Light Source |
LED Lamp |
White Color |
|
LED QTY |
1PCS |
|
|
LED Lamp Power/PCS |
60w/pcs |
|
|
LED Brand |
Taiwan Jingyuan Chip |
|
|
Lamp Lifetime |
100,000 Hours |
|
|
Control |
Control Signal |
DMX512 |
|
DMX Connections |
3-pin XLR-sockets |
|
|
DMX Channels |
5 or 13CH Two Modes Slection |
|
|
Control Display |
LCD Display |
|
|
Head Movement |
X-pan 540° Y-Tilt 270° (8 or 16 bit) |
|
|
Operation Modes |
Master/Slave, Stand-alone, Sound-actived |
|
|
Optical System |
Dimmer |
0-100% |
|
Strobe |
2-249Hz |
|
|
Color Mixing |
0-100% |
|
|
Gobo Wheel |
1 Fixed Gobo Wheel 1 Rotation Gobo Wheel |
|
|
Color Wheel |
1 Cololor Wheel 8 Colors |
|
|
Special Effects |
Prsim, Focus |
|
|
Beam Angle |
15° |
|
|
Physical |
Housing Materials |
Flame-Retardant Plastic |
|
Finish Color |
Black |
|
|
IP Rate |
IP20 |
|
|
Single Carton Size |
(L x W x H): 540x400x380(mm) |
|
|
Gross Weight |
15KG |
|
|
Certification |
Certification |
CE |
EFFECT PICTURE
